custom listview with image and text in android example

custom listview with image and text in android example

in this, An article today learns custom listview with image and text in android example. Listview in android studio custom listview clickable in android studio. Ther many types of listview in android studio. For more information visit the android developer google this link.



Follow the method custom listview with image and text in android example.

First method:

Declaire a value for MainActivity.java:



String[] maintitle ={

            "Title 1","Title 2",

            "Title 3","Title 4",

            "Title 5",

    };



    String[] subtitle ={

            "ic_launcher 1","ic_launcher 2",

            "ic_launcher 3","ic_launcher 4",

            "ic_launcher 5",

    };



    Integer[] imgid={

            R.drawable.ic_launcher,R.drawable.ic_launcher,

            R.drawable.ic_launcher,R.drawable.ic_launcher,

            R.drawable.ic_launcher,

    };



Then the second method:

Create a class MyListAdapter.java and declare a String, Integer  value follows the code:

    private final Activity context;

    private final String[] maintitle;

    private final String[] subtitle;

    private final Integer[] imgid;



then create a get view function in MylistAdapter class



public View getView(int position,View view,ViewGroup parent) {

        LayoutInflater inflater=context.getLayoutInflater();

        View rowView=inflater.inflate(R.layout.mylist, null,true);



        TextView titleText = (TextView) rowView.findViewById(R.id.title);

        ImageView imageView = (ImageView) rowView.findViewById(R.id.icon);

        TextView subtitleText = (TextView) rowView.findViewById(R.id.subtitle);



        titleText.setText(maintitle[position]);

        imageView.setImageResource(imgid[position]);

        subtitleText.setText(subtitle[position]);



        return rowView;

    };



Follow the Full Source code  custom listview with image and text in android example.

1.MainActivity.java:

package com.akash.customelistview;

import android.os.Bundle;

import android.view.View;

import android.widget.AdapterView;

import android.widget.ListView;

import android.widget.Toast;

import androidx.appcompat.app.AppCompatActivity;

public class MainActivity extends AppCompatActivity {

    ListView list;

    String[] maintitle ={

            "Title 1","Title 2",

            "Title 3","Title 4",

            "Title 5",

    };

    String[] subtitle ={

            "ic_launcher 1","ic_launcher 2",

            "ic_launcher 3","ic_launcher 4",

            "ic_launcher 5",

    };

    Integer[] imgid={

            R.drawable.ic_launcher,R.drawable.ic_launcher,

            R.drawable.ic_launcher,R.drawable.ic_launcher,

            R.drawable.ic_launcher,

    };

    @Override

    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.activity_main);

        MyListAdapter adapter=new MyListAdapter(this, maintitle, subtitle,imgid);

        list=(ListView)findViewById(R.id.list);

        list.setAdapter(adapter);

        list.setOnItemClickListener(new AdapterView.OnItemClickListener() {

            @Override

            public void onItemClick(AdapterView<?> parent, View view,int position, long id) {

                // TODO Auto-generated method stub

                if(position == 0) {

                    //code specific to first list item

                    Toast.makeText(getApplicationContext(),"You are click  First Option ",Toast.LENGTH_SHORT).show();

                }

                else if(position == 1) {

                    //code specific to 2nd list item

                    Toast.makeText(getApplicationContext(),"You are click Second Option ",Toast.LENGTH_SHORT).show();

                }

                else if(position == 2) {

                    Toast.makeText(getApplicationContext(),"You are click Third Option ",Toast.LENGTH_SHORT).show();

                }

                else if(position == 3) {

                    Toast.makeText(getApplicationContext(),"You are click Forth Option ",Toast.LENGTH_SHORT).show();

                }

                else if(position == 4) {

                    Toast.makeText(getApplicationContext(),"You are click Fifth Option ",Toast.LENGTH_SHORT).show();

                }

            }

        });

    }

}

2.activity_main.xml:

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

    xmlns:tools="http://schemas.android.com/tools"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:paddingBottom="@dimen/activity_vertical_margin"

    android:paddingLeft="@dimen/activity_horizontal_margin"

    android:paddingRight="@dimen/activity_horizontal_margin"

    android:paddingTop="@dimen/activity_vertical_margin"

    tools:context=".MainActivity">

    <ListView

        android:id="@+id/list"

        android:layout_width="match_parent"

        android:layout_height="wrap_content"

        android:layout_marginBottom="50dp">

    </ListView>

</RelativeLayout>

3.MyListAdapter.java:

package com.akash.customelistview;

import android.app.Activity;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.ArrayAdapter;

import android.widget.ImageView;

import android.widget.TextView;

public class MyListAdapter extends ArrayAdapter<String> {

    private final Activity context;

    private final String[] maintitle;

    private final String[] subtitle;

    private final Integer[] imgid;

    public MyListAdapter(Activity context, String[] maintitle,String[] subtitle, Integer[] imgid) {

        super(context, R.layout.mylist, maintitle);

        // TODO Auto-generated constructor stub

        this.context=context;

        this.maintitle=maintitle;

        this.subtitle=subtitle;

        this.imgid=imgid;

    }

    public View getView(int position,View view,ViewGroup parent) {

        LayoutInflater inflater=context.getLayoutInflater();

        View rowView=inflater.inflate(R.layout.mylist, null,true);

        TextView titleText = (TextView) rowView.findViewById(R.id.title);

        ImageView imageView = (ImageView) rowView.findViewById(R.id.icon);

        TextView subtitleText = (TextView) rowView.findViewById(R.id.subtitle);

        titleText.setText(maintitle[position]);

        imageView.setImageResource(imgid[position]);

        subtitleText.setText(subtitle[position]);

        return rowView;

    };

}

4.mylist.xml:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:orientation="horizontal" >

    <ImageView

        android:id="@+id/icon"

        android:layout_width="60dp"

        android:layout_height="60dp"

        android:padding="5dp" />

    <LinearLayout android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:orientation="vertical">

        <TextView

            android:id="@+id/title"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            android:text="Medium Text"

            android:textStyle="bold"

            android:textAppearance="?android:attr/textAppearanceMedium"

            android:layout_marginLeft="10dp"

            android:layout_marginTop="5dp"

            android:padding="2dp"

            android:textColor="#4d4d4d" />

        <TextView

            android:id="@+id/subtitle"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            android:text="TextView"

            android:layout_marginLeft="10dp"/>

    </LinearLayout>

</LinearLayout>

5.AndroidManifest.xml:

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

    package="com.akash.customelistview">

    <application

        android:allowBackup="true"

        android:icon="@mipmap/ic_launcher"

        android:label="@string/app_name"

        android:roundIcon="@mipmap/ic_launcher_round"

        android:supportsRtl="true"

        android:theme="@style/AppTheme">

        <activity android:name=".MainActivity">

            <intent-filter>

                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />

            </intent-filter>

        </activity>

    </application>

</manifest>

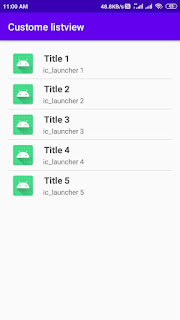

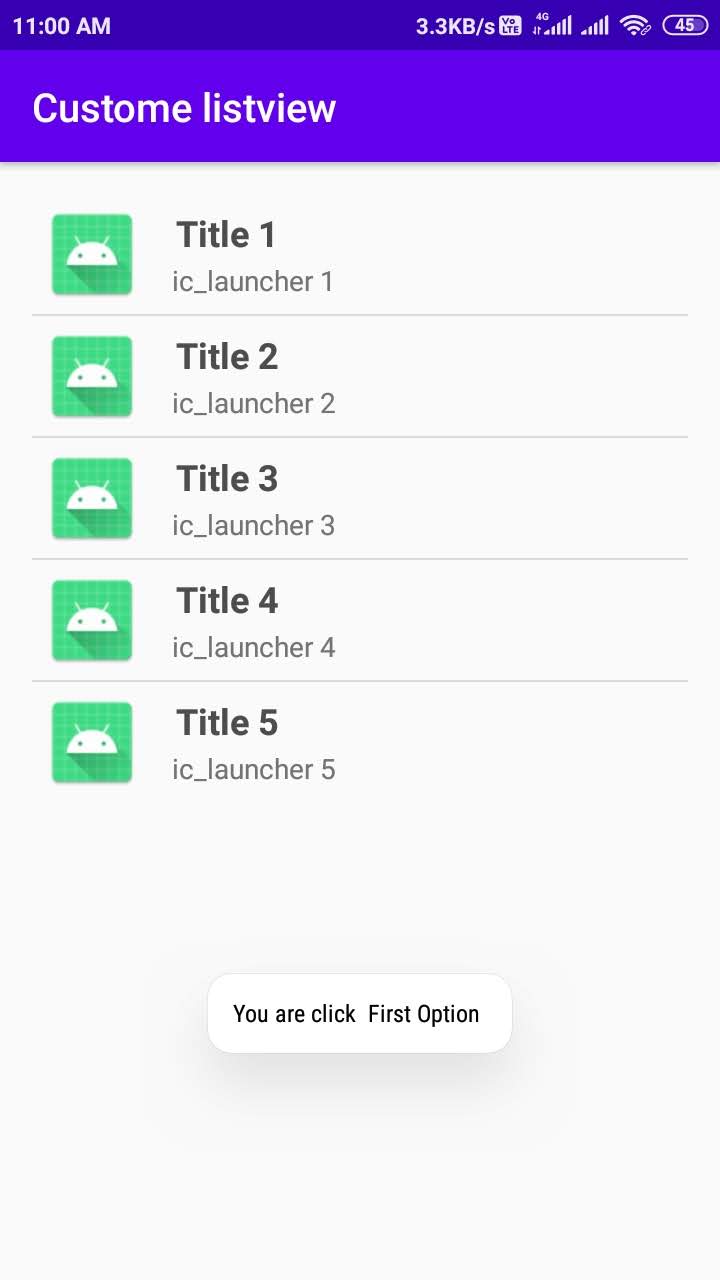

6.Output:
