android toggle button example

 android toggle button example

Hello, Today Learn android toggle button example. Follow the full Source Code android toggle button example.

1.Open Android Studio Create A New Project:

2.Chocie A Empty Activity And Click Next Button:

3.Then Change A App Name And Package Name  And Click Finsih.

Follow the Full Source Code  android toggle button example

1.MainActivity.java:

package com.akash.togglebutton;

import android.app.Activity;

import android.os.Bundle;

import android.view.View;

import android.widget.Toast;

import android.widget.ToggleButton;

public class MainActivity extends Activity {

ToggleButton tbutton;

    @Override

    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.activity_main);



        tbutton = (ToggleButton)findViewById(R.id.toggleButton1);



        tbutton.setOnClickListener(new View.OnClickListener() {



        @Override

        public void onClick(View v) {



        if(tbutton.isChecked())

        {

        Toast.makeText(MainActivity.this, "Toggle button is on", Toast.LENGTH_LONG).show();

        }

        else {

        Toast.makeText(MainActivity.this, "Toggle button is Off", Toast.LENGTH_LONG).show();

        }

        }

        });

    }

}

2.activity_main.xml:

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

    xmlns:tools="http://schemas.android.com/tools"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:paddingBottom="@dimen/activity_vertical_margin"

    android:paddingLeft="@dimen/activity_horizontal_margin"

    android:paddingRight="@dimen/activity_horizontal_margin"

    android:paddingTop="@dimen/activity_vertical_margin"

    android:background="@color/colorPrimary"

    tools:context=".MainActivity" >

    <ToggleButton

        android:id="@+id/toggleButton1"

        android:textOff=""

        android:textOn=""

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_centerHorizontal="true"

        android:layout_centerVertical="true"

        android:background="@drawable/toggle_button_background"

        />

</RelativeLayout>

3.AndroidManifest.xml:

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

    package="com.akash.togglebutton">

    <application

        android:allowBackup="true"

        android:icon="@mipmap/ic_launcher"

        android:label="@string/app_name"

        android:roundIcon="@mipmap/ic_launcher_round"

        android:supportsRtl="true"

        android:theme="@style/AppTheme">

        <activity android:name=".MainActivity">

            <intent-filter>

                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />

            </intent-filter>

        </activity>

    </application>

</manifest>

4.toggle_button_background.xml:

<?xml version="1.0" encoding="utf-8"?>

<selector xmlns:android="http://schemas.android.com/apk/res/android">

  <item android:drawable="@drawable/on_toggle_button" android:state_checked="true"/>

  <item android:drawable="@drawable/off_toggle_button" android:state_checked="false"/>

</selector>

5.colors.xml:

<?xml version="1.0" encoding="utf-8"?>

<resources>

    <color name="colorPrimary">#6200EE</color>

    <color name="colorPrimaryDark">#3700B3</color>

    <color name="colorAccent">#03DAC5</color>

</resources>

6.dimens.xml:

<resources>

    <!-- Default screen margins, per the Android Design guidelines. -->

    <dimen name="activity_horizontal_margin">16dp</dimen>

    <dimen name="activity_vertical_margin">16dp</dimen>

</resources>

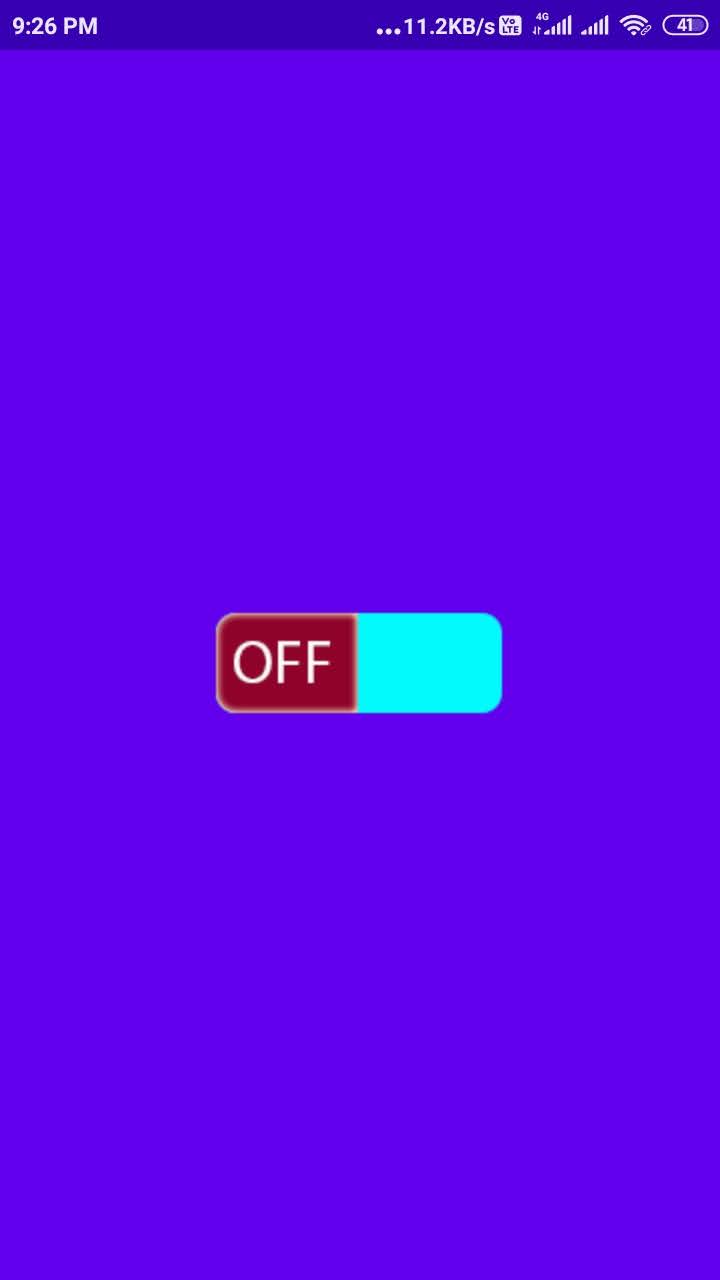

7.Output:
